User Interface

Insight is organized around the development tasks you perform while validating a vision application: inspect files, prepare media, start sources, view output, and watch runtime health.

Workspace​

The Workspace view lets you browse the project files visible to Insight. In the Neat Development Environment, this is normally /workspace; outside the SDK, Insight falls back to the current working directory.

Use Workspace to:

  • Search and browse source files, configuration, model artifacts, and generated outputs.
  • Preview text, code, Markdown, images, and selected binary artifacts.
  • Inspect MPK package archives without manually extracting them.
  • View specialized development artifacts such as MLA stats, MPK manifests, and pipeline sequence files.

Workspace is especially useful when an application produces several build outputs and logs. It gives you a browser-accessible way to inspect those artifacts while staying in the same development session.

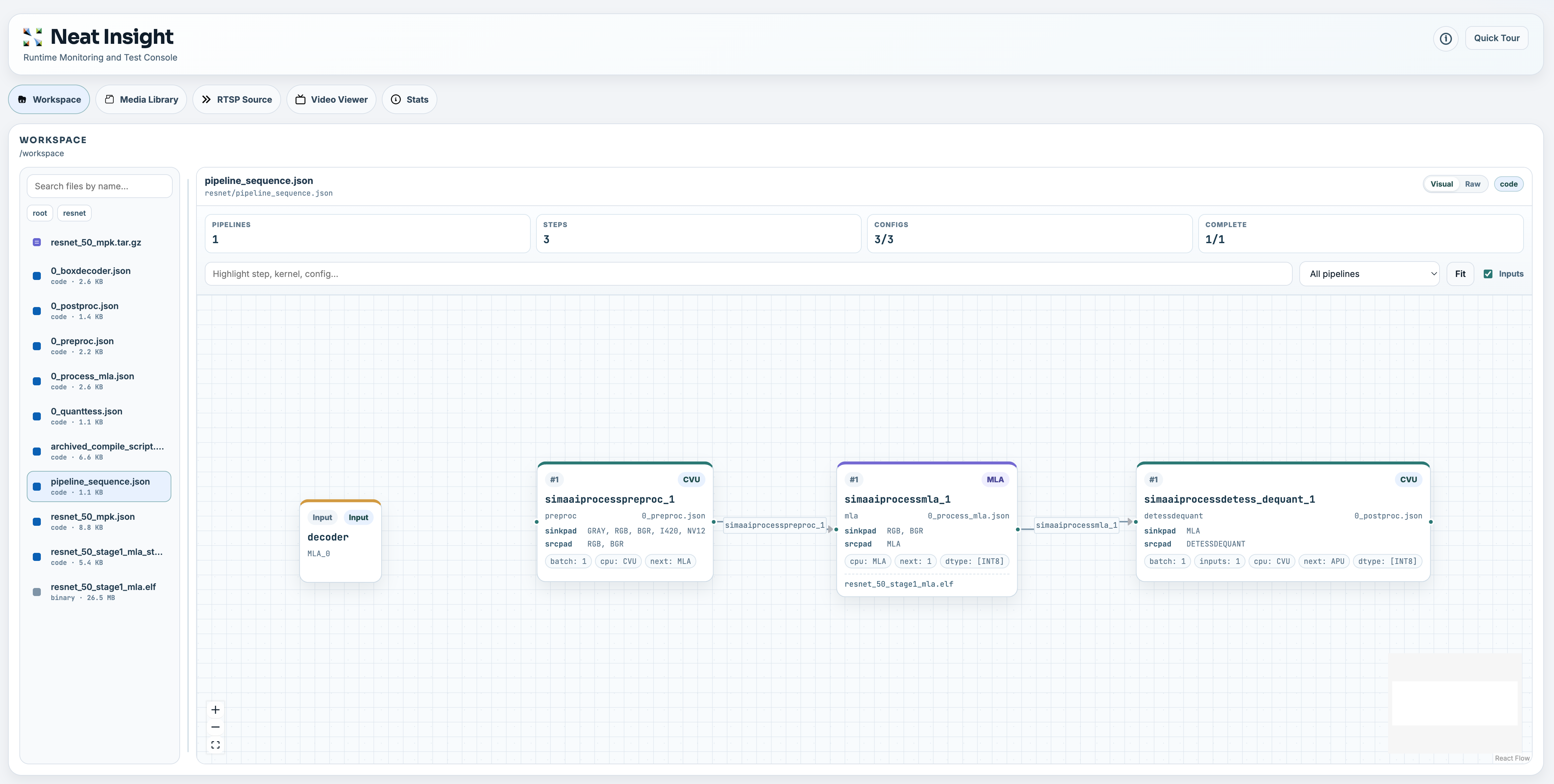

Insight Workspace view showing a pipeline sequence graph and workspace artifacts.

Media Library​

The Media Library is where you manage media files used for application tests. You can upload videos or images, filter the file list, preview selected files, inspect basic media metadata, and delete files that are no longer needed.

Supported video formats include common container formats such as mp4, mov, avi, mkv, and webm. When supported tooling is available, uploaded MP4 files are optimized for low-latency streaming.

Use Media Library before configuring RTSP sources so you know which files are available and whether they are readable.

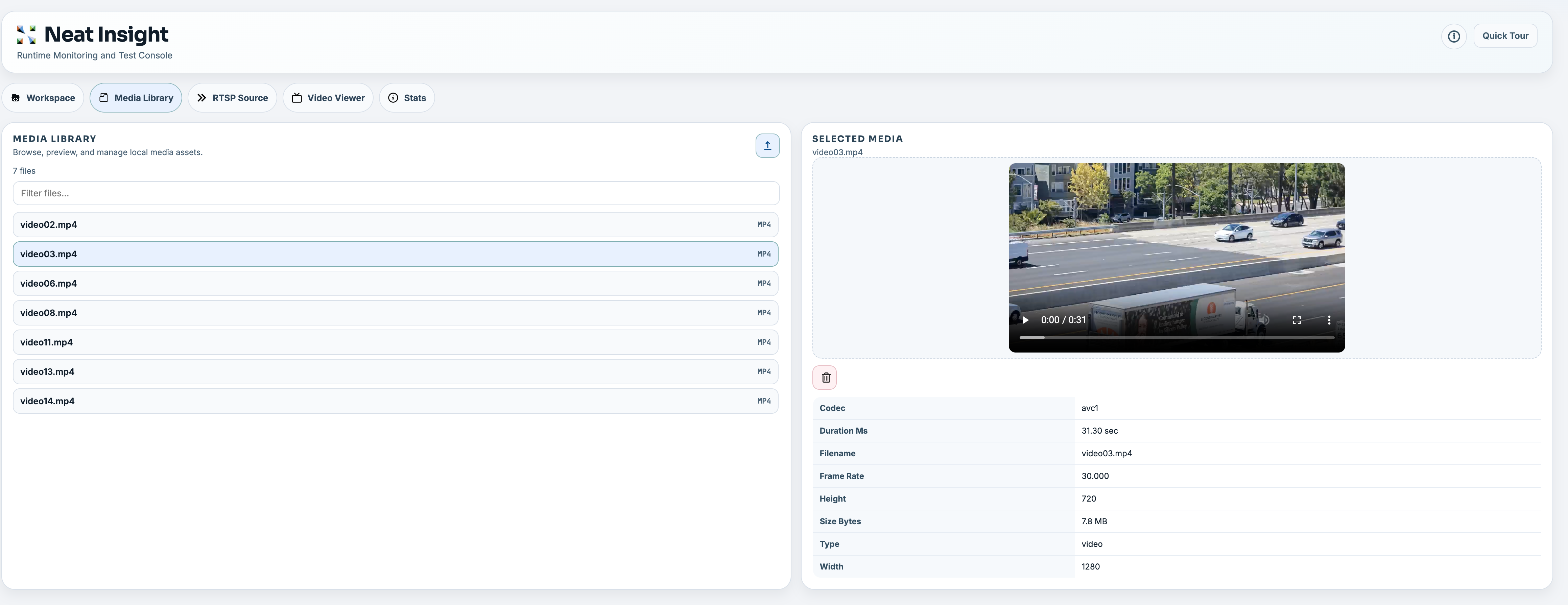

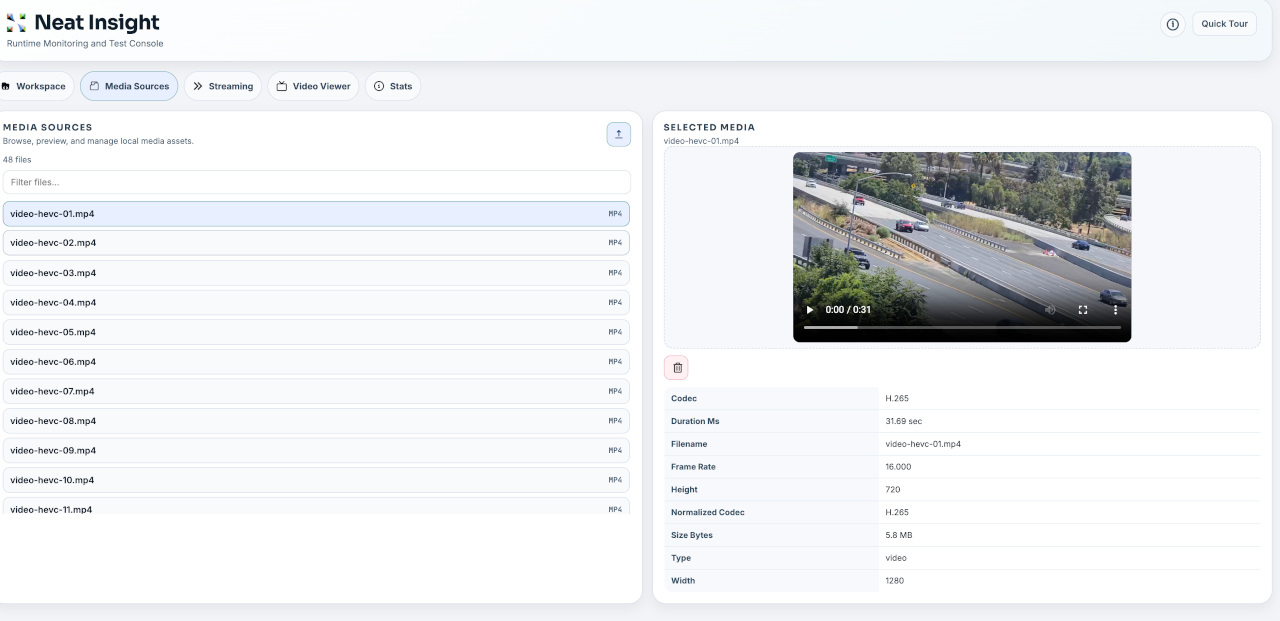

Insight Media Library view showing a selected video preview and media metadata.

The Media Library combines file selection, preview, metadata inspection, upload, and delete actions in one view.

SiMa provides curated videos for repeatable testing. Use these when you need a known media set:

https://artifacts.sima-neat.com/assets/videos/720p16/video01.mp4
...
https://artifacts.sima-neat.com/assets/videos/720p16/video16.mp4

https://artifacts.sima-neat.com/assets/videos/480p30/video01.mp4
...
https://artifacts.sima-neat.com/assets/videos/480p30/video16.mp4

Download the files you need, then import them with the Media Library upload action.

RTSP Source​

The RTSP Source view turns uploaded media files into live RTSP streams. Each source slot maps to an RTSP path:

rtsp://127.0.0.1:8554/src1
rtsp://127.0.0.1:8554/src2
rtsp://127.0.0.1:8554/src3

Those URLs are correct for applications running in the same SDK container as Insight. If the application runs on a DevKit or another external machine, use the SDK host IP address and the mapped rtsp.tcp host port from neat --json.

You can assign media to a source, start and stop individual sources, auto-assign unique files across source slots, bulk start sources, stop all streams, and copy RTSP URLs for use by applications or test harnesses.

This view is useful when you need repeatable input streams for an object detection, segmentation, tracking, classification, or GenAI vision application.

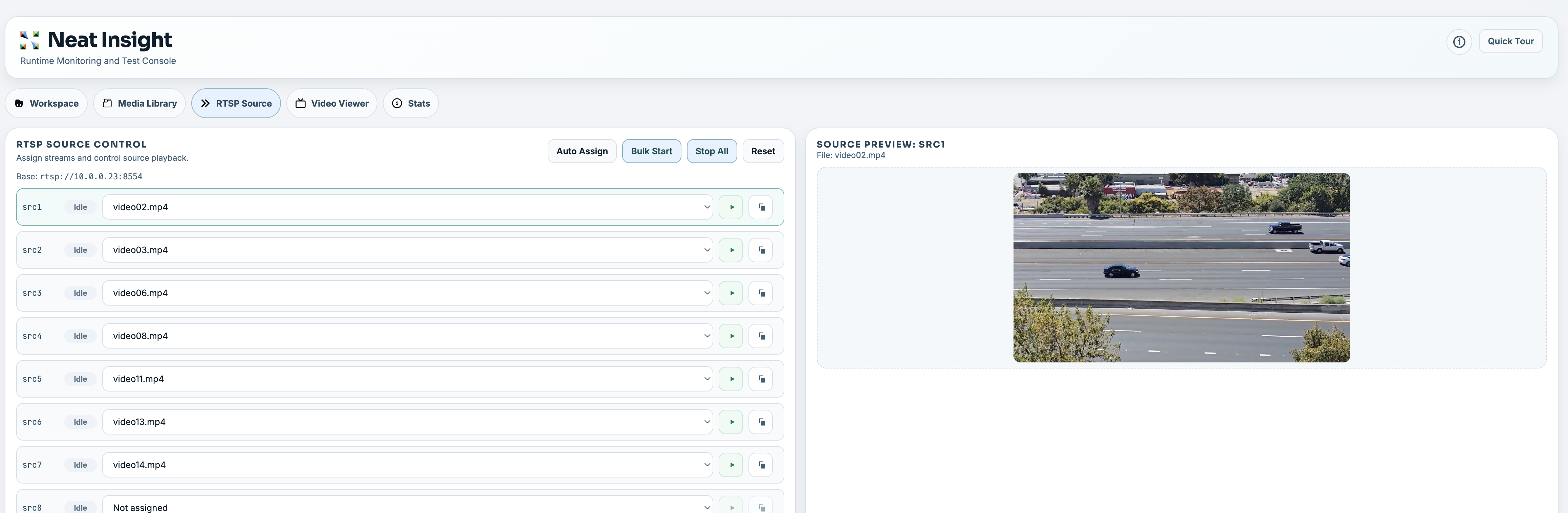

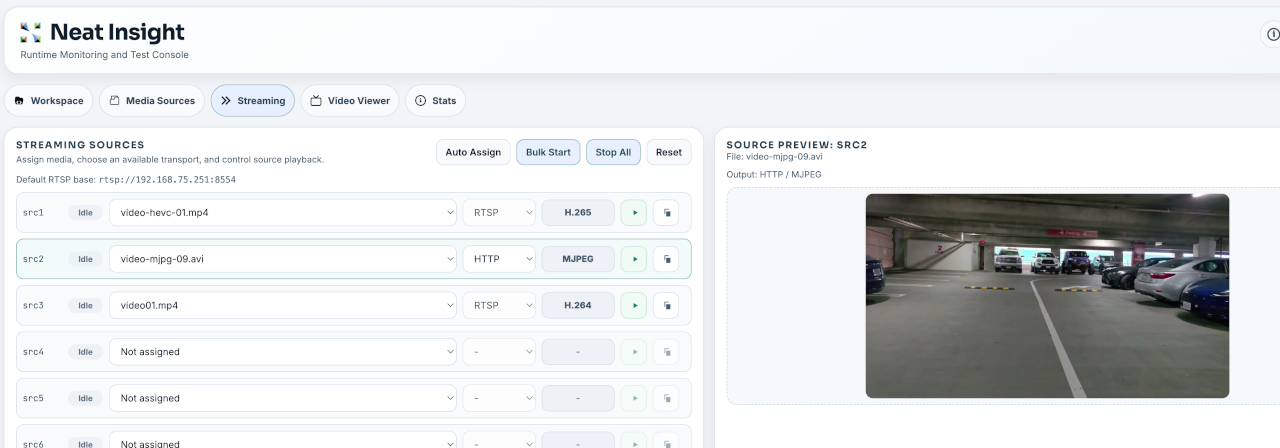

Insight RTSP Source view showing assigned source slots and source preview.

The RTSP Source view lets you assign media files to source slots, start or stop streams, and preview the selected source before wiring it into an application.

Video Viewer​

The Video Viewer displays low-latency WebRTC output from the video forwarder. It supports up to 80 channels. Inside the SDK container, video channels use UDP ports 9000-9079, and matching metadata channels use UDP ports 9100-9179.

For channel N:

video:    UDP 9000 + N
metadata: UDP 9100 + N

For example, channel 0 uses video UDP 9000 and metadata UDP 9100; channel 1 uses video UDP 9001 and metadata UDP 9101.

If the sender runs on a DevKit or another external machine, use the mapped videoUDP and metadataUDP host port ranges from neat --json. The channel math is the same, but the starting ports may be different.

The viewer can render metadata overlays for common vision outputs, including object detection, classification, pose estimation, segmentation, and tracking. Viewer settings let you tune overlay behavior such as confidence thresholds, ROI display, tracking history, and metadata delay.

Use the Video Viewer to confirm:

  • The application is sending video to the expected channel.
  • Metadata is arriving on the matching metadata channel.
  • Overlays align with the video frame.
  • Browser playback is healthy.

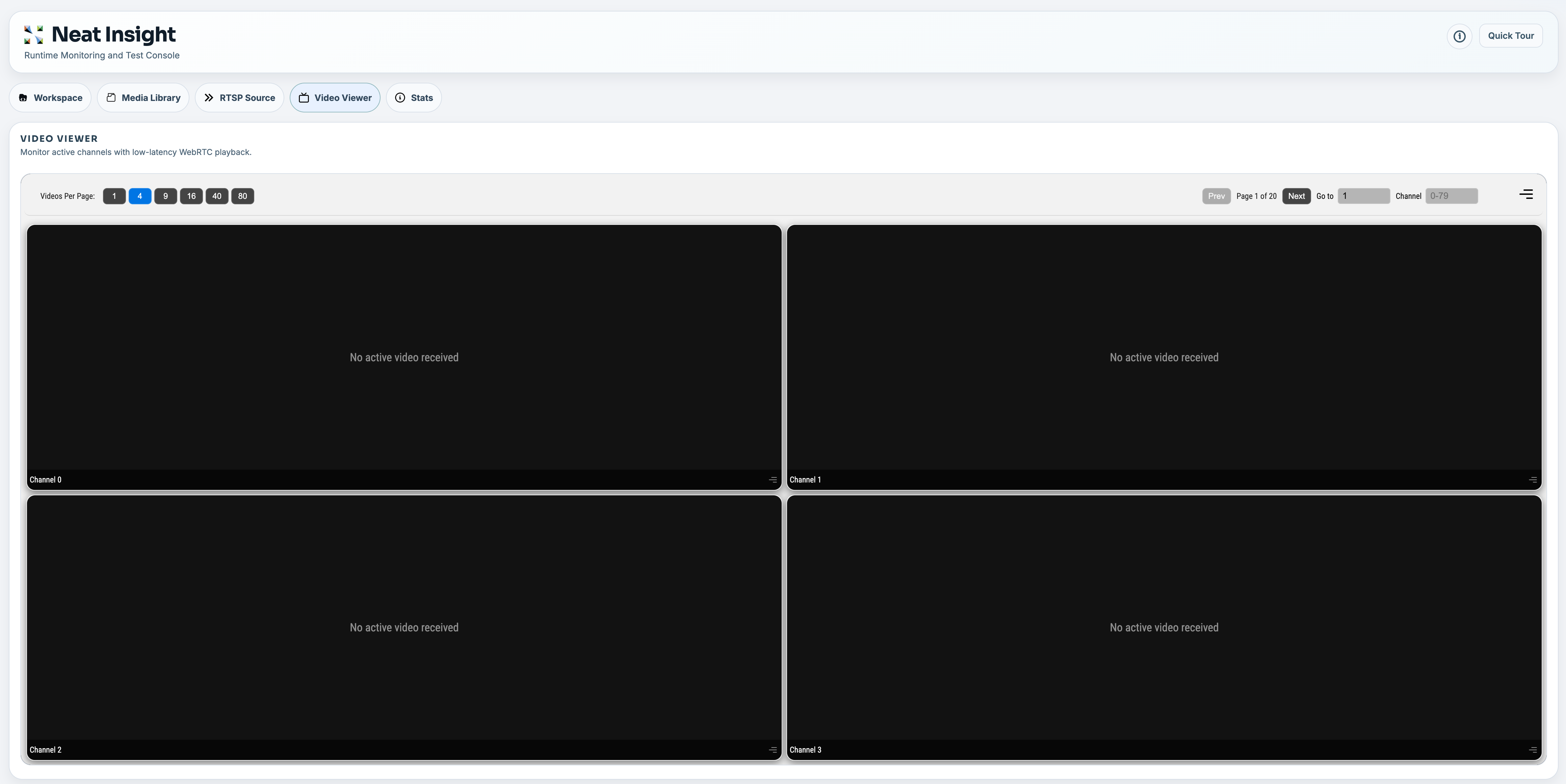

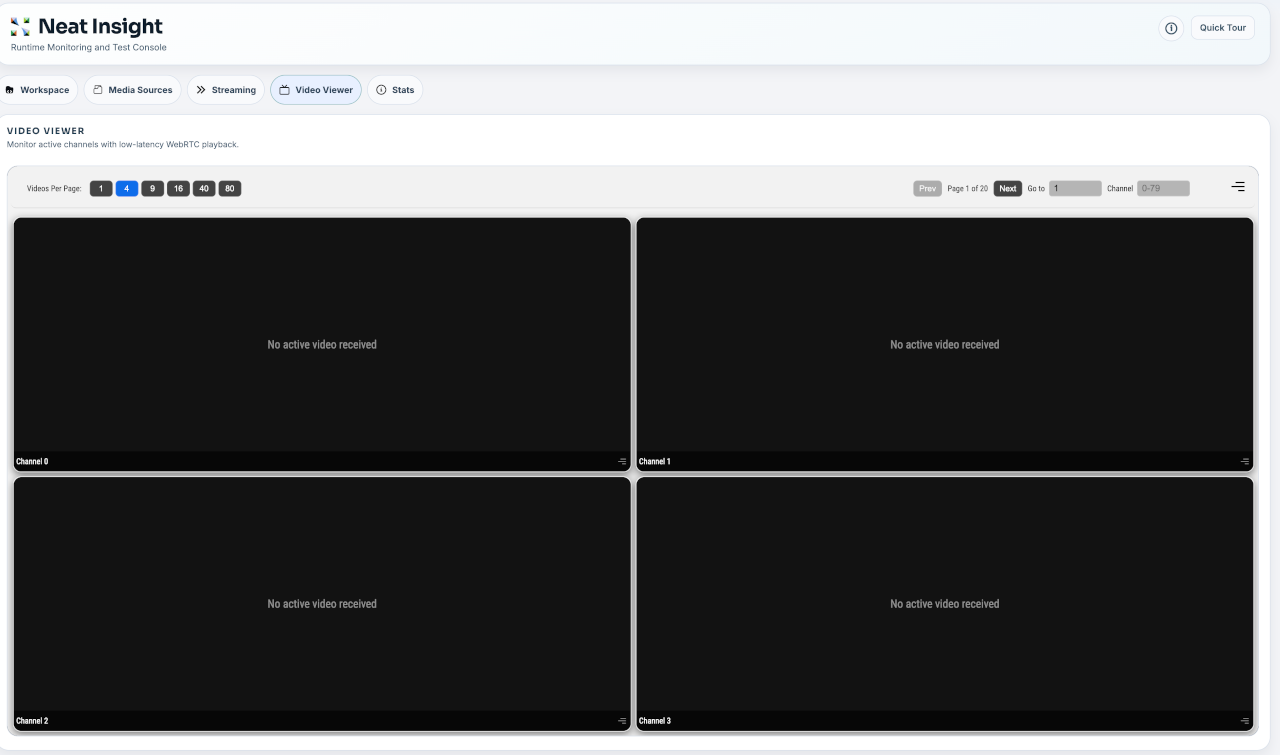

Insight Video Viewer showing a four-channel WebRTC grid.

The Video Viewer can show one or more channels at a time, with pagination and channel selection controls for larger multi-stream tests.

Stats​

The Stats view is a placeholder in the current release. It marks the planned location for system load and runtime metrics while an application is running, including CPU, memory, disk, temperature when available, MLA memory, and profiling timeline data streamed through Insight.

This feature is intended to be completed in the next release. Once complete, use Stats when you need to separate application behavior from system behavior. For example, a dropped frame problem may come from the application stream path, but it may also correlate with CPU load, memory pressure, or device runtime state.

System Information​

The system information panel summarizes the environment Insight can see. In the Neat Development Environment, it can show SDK and component information, Insight status, update information, and exposed port mappings such as mainUI and videoUI.

This is the first place to check when a URL does not match the default port. Insight reads the available port map and uses the mapped videoUI port when opening the viewer. For command-line workflows, neat --json shows the same port-map information.
